Wall electrical PVC Plastic Wire Duct
- Place of Origin:CN;GUA
- Model Number:GN40283
- Brand Name:G&N or OEM
- Type:Solid
Wall Electriacl PVC Plastic Wire Duct
1. Product Description
| Impact strength | Resistant to compression and impact, suitable to be buried in concrete |
| Non-conductive | Good insulation, able to resist 25KV voltage, assuring a safe system |
| Fire resistance | with self-extinguishing function |
| Corrosion Resistance | Resistant to acids, bases and salts, assuring a lower maintenance cost and a longer performance life |
| Smooth surface | Small friction and high flow capacity to ensure the cables go through smoothly |
| Easy Installation | Light weight, easy to cut, transport, bent and handle; easy connecting by solvent cement and threading joining without leakage |
2. Trunking Specification and Custom Size Accepted
| Item | Size(W*H)mm | Thickness(mm) |
PVC Trunking
| 10x10 | 0.60 |
| 15x10 | 0.55/0.80 | |
16x16
| 0.58/0.63/0.80/1.00 | |
| 18x9 | 0.40 | |
| 20x10 | 0.45/0.55/0.70 | |
| 20x12 | 0.50/0.60/0.80 | |
| 23x13 | 0.65/0.75 | |
| 24x14 | 0.65/0.7 | |
| 25x16 | 0.63/0.72/1.00 | |
| 25x25 | 0.75/0.95 | |
| 30x15 | 0.60/0.76 | |
| 39x19 | 0.75/0.90 | |
| 40x16 | 0.60/0.80/1.00 | |
| 40x25 | 0.68/0.76/1.00/1.20 | |
| 40x30 | 1.00/1.20 | |
| 40x40 | 1.38 | |
| 50x25 | 1.00 | |
PVC SquareTrunking
| 50x50 | 1.10/1.25 |
| 59x22 | 0.85/1.10 | |
| 60x30 | 1.10 | |
| 60x40 | 1.20/1.40 | |
| 60x60 | 1.68 | |
| 75x50 | 1.25 | |
| 75x75 | 1.30/1.50 | |
| 80x40 | 1.35 | |
| 80x50 | 1.40/1.70 | |
| 99x27 | 0.90/1.20 | |
| 100x40 | 1.35/1.50 | |
100x50 | 1.35/1.70 | |
| 100x60 | 1.65/1.90 | |
| 100x75 | 1.65/2.00 | |
| 100x100 | 1.60/2.00 | |
| 100x150 | 2.00 | |

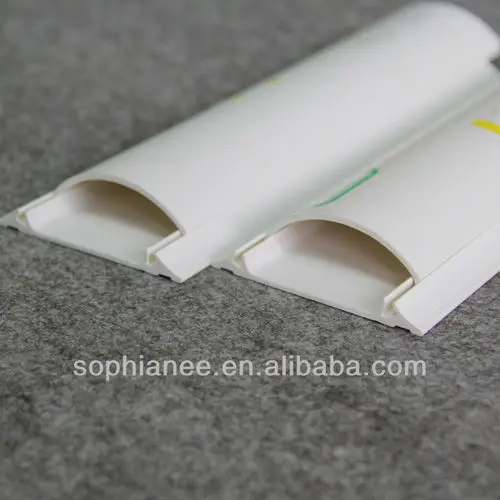

PVC ARC-Floor Trunking
| 35x10 | 1.75 |
| 50x15 | 1.60 | |
| 70x20 | 2.00 | |

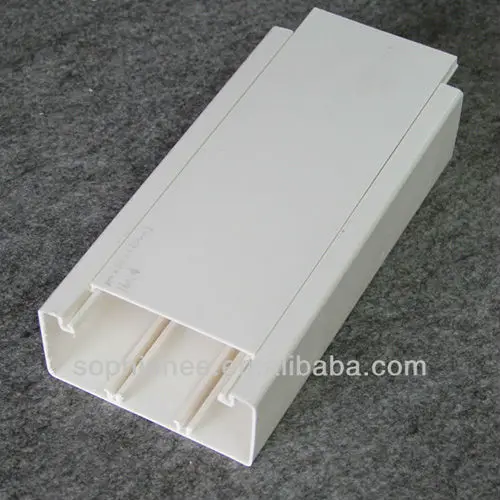

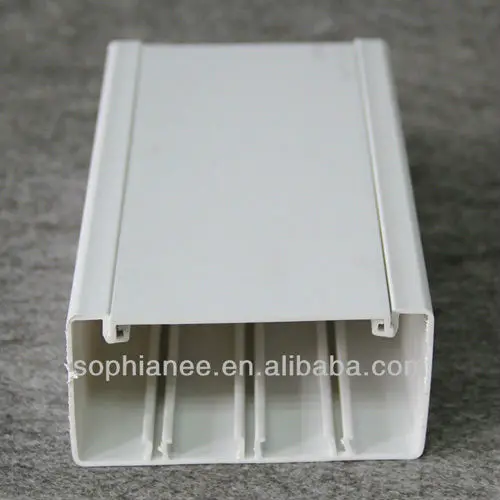

Special PVC Trunking
| 100x50 | 1.35 (three spacers) |
100x50 | 1.35 (four spacers) | |
Customized
| Accepted | |
3. Our Advantage
1) Machinery: More than 60 advanced Extrusion machine and 30 Injection
machine with max 500T.
2) Experience: Over 30 years of experience in Thermoplastic Extrusion and Injection, such as running temperature control and continuously formula optimization.
3)Quality Assurance: 24-hour Rigorous QC Team which is in line with ISO 9001 Certification;
Large-scaled Mould Workshop: with 4 senior mould designers and a team of experienced mould manufacturing technicians.
4)International Projects: Supply building and irrigation Projects in Asia, Africa, Middle East, Russia and other countries.
Product Showing

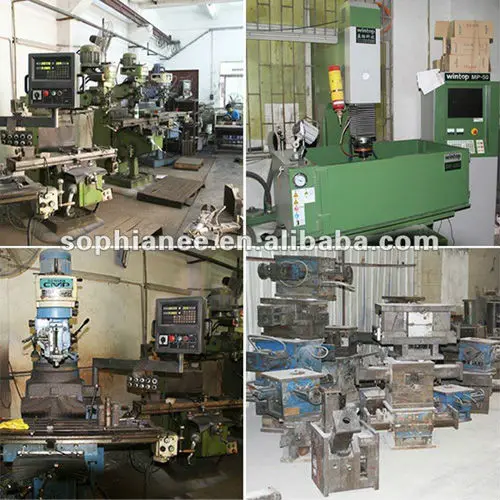

Our Factory
Our Certification
